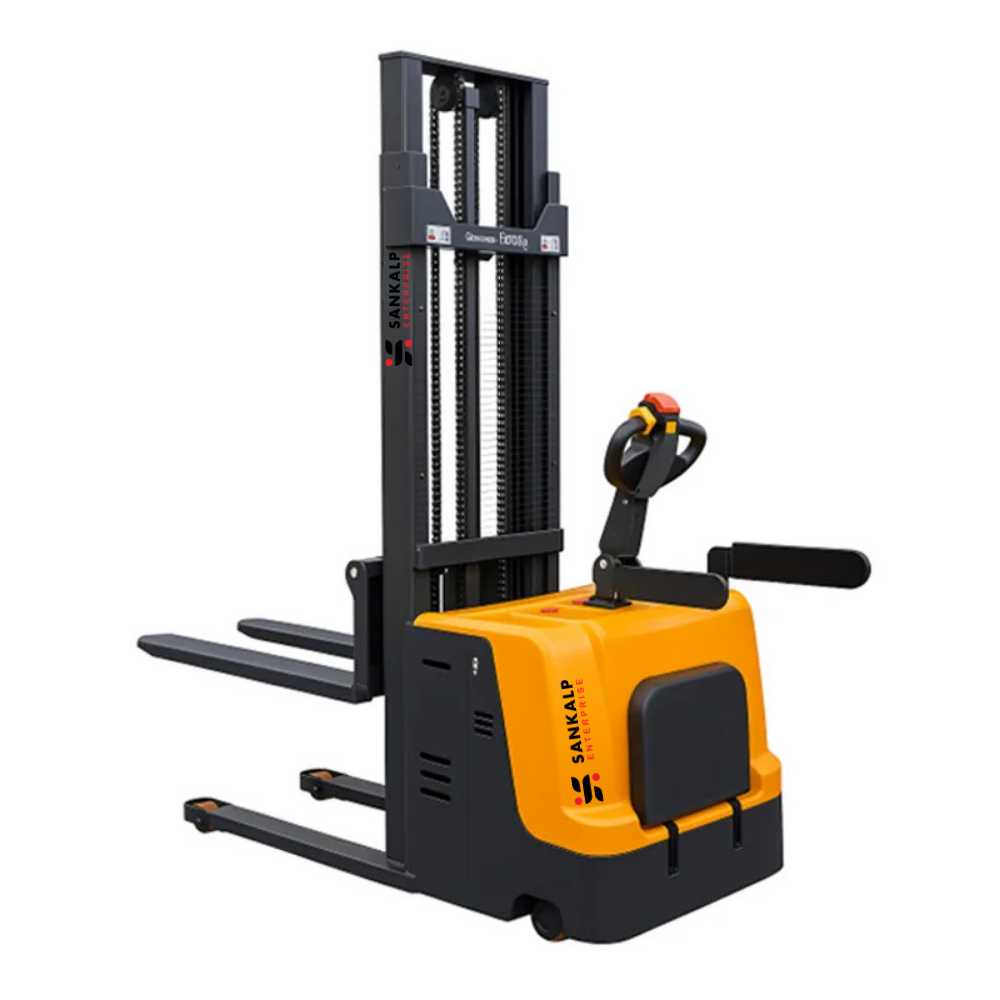

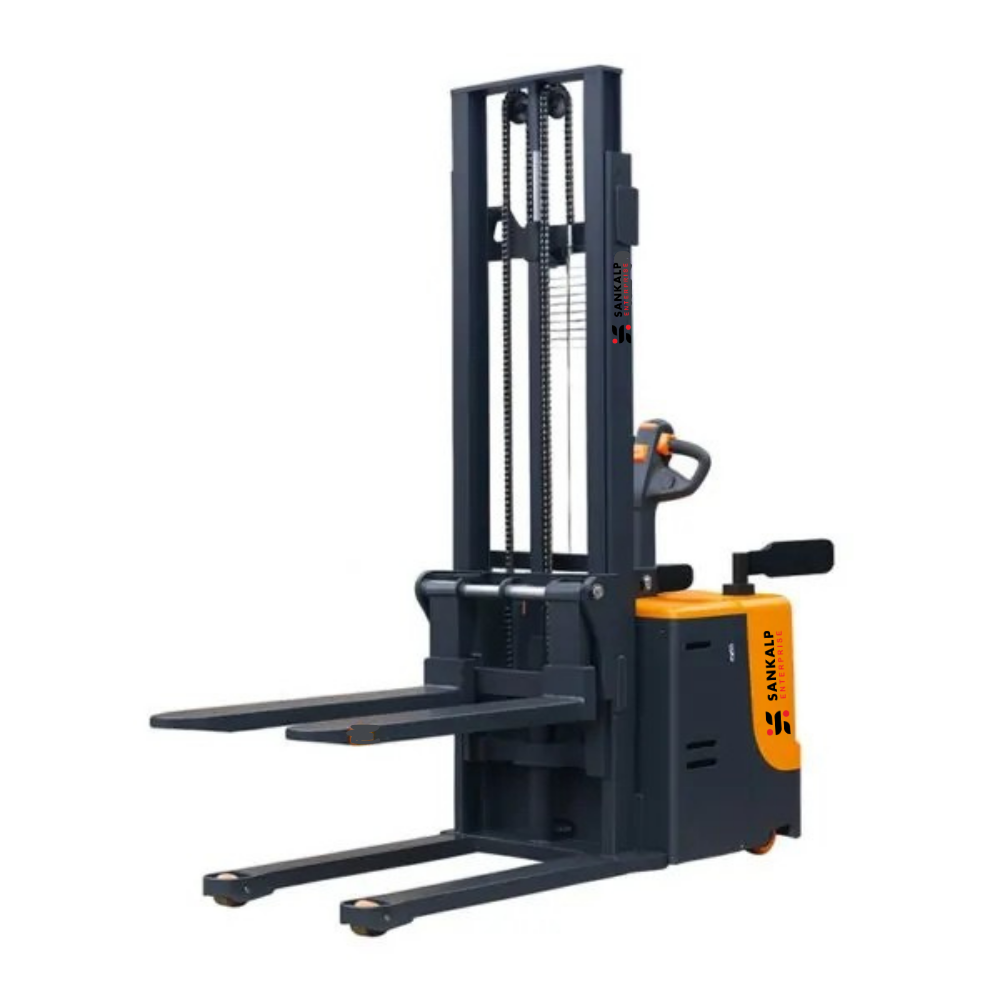

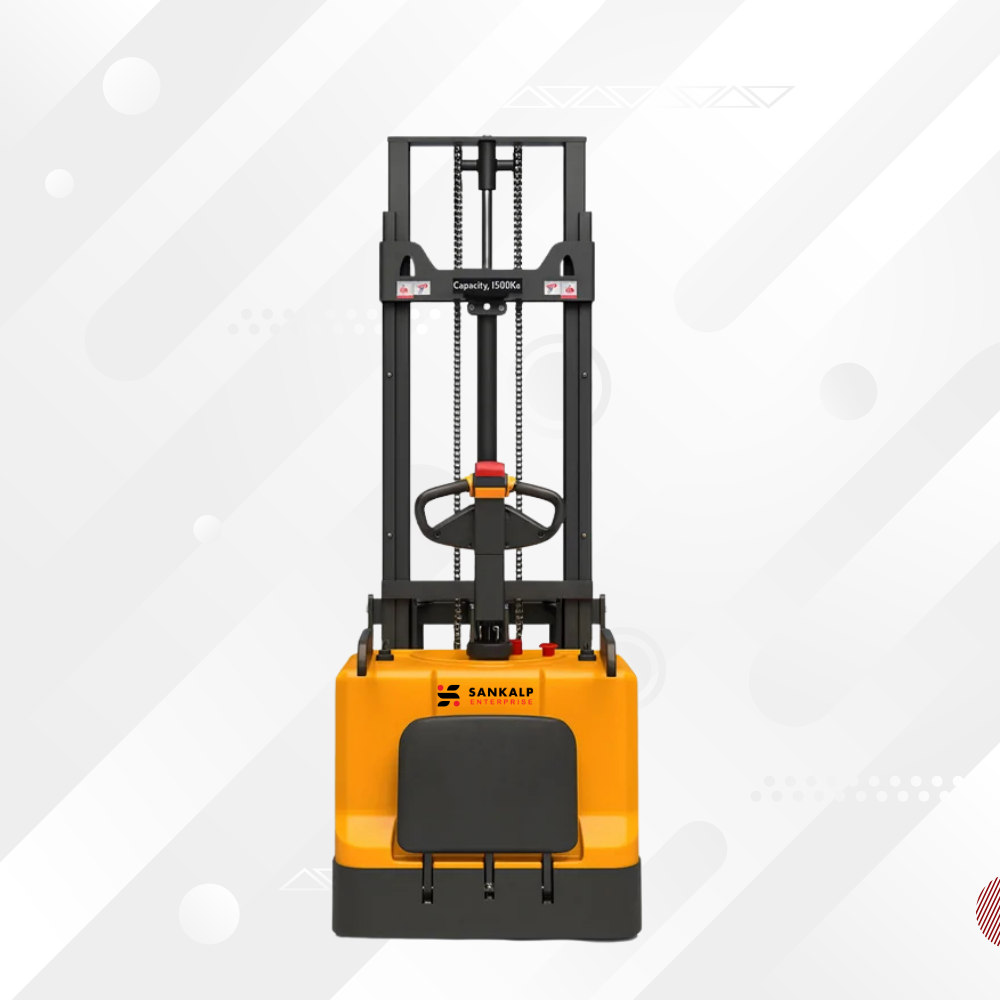

Fully Battery Stacker
Fully Battery Stacker
₹450,000 Add to cart
Semi Battery Stacker Semi Battery Stacker ₹98,000 – ₹125,500Price range: ₹98,000 through ₹125,500
Manual Stacker Manual Stacker ₹27,000 – ₹70,000Price range: ₹27,000 through ₹70,000

Fully Battery Stacker

₹450,000

Sankalp Enterprise provides fully battery-operated stackers, crafted with advanced technology and quality-tested components. Designed to meet industry standards, each unit undergoes rigorous inspections to ensure optimal performance. Customizable to client-specific requirements, these stackers deliver innovative and reliable solutions for efficient material handling across diverse applications.

Buy on WhatsApp
Drive ModeElectric
Driving modeStand / Step–
Rated load Capacity1500Kg
Load Center Distance550mm
Width Overall Forks(mm)685
Wheel MaterialPU( Polyurethane)–
Hoist speed72mm / sec
maximum travelling speed110mm / sec
Front Wheel80 X 70mm
Rear Wheel100 X 50mm
Driving Wheel250 X 75mm
Lifting Height3500mm
Door Frame Height1818mm
Door Frame Max. Working Height3068mm
Fork length1150mm
Fork Out Side Width545mm
Fork load Center Distance550mm
Fork Span width500mm
Type of forkRectangular–
Overall Width845mm
Overall Length2480mm
Overall Height With fork in Lowest position90mm
Turning Radius1588mm
Overall motor50LPM
Driving Speed4.5 / 3.5mm
Lifting Speed120mm / 100mmper/sec
Climbing gradient7 mm / 5 mmmm
Gradient3.5Mtr
Brake modeElectronic Brake–
Battery Voltage/Rated Capacity24/210V/ah
Driving motor1.2Kw
Lifting motor2.2Kw
NW/Gw ( Total Wait)1038Kg.

Additional information

Weight 540 kg
